The GMP laboratory: HPLC, method validation and OOS results

An analytical method answers a particular question about a particular kind of sample. The laboratory needs to know what the sample represents, which specification or other criterion applies and how the result will be used. Those details influence preparation, testing and review. A method cannot be assessed sensibly when its intended purpose is unclear.

Sample identification remains important throughout the activity. A container label, preparation record and instrument file should remain connected to the same sample. Relevant handling and preparation details belong in the evidence. When that connection breaks, a plausible result may no longer support the intended batch decision.

The testing plan should also distinguish routine work from investigation work. Additional testing carried out to understand an unexpected finding has a different purpose from the initial approved test. Clear records of that purpose help a later reviewer understand why the work occurred and what conclusion can reasonably be drawn from it.

The HPLC overview describes high-performance liquid chromatography as a technique for separating, identifying and quantifying components of a mixture. A liquid mobile phase carries the sample through a column containing a stationary phase. Components interact differently with those phases and emerge at different times. A detector measures the material emerging from the column.

The resulting chromatogram presents the detector signal as a function of the separation. Its peaks need interpretation in the context of the method. A peak’s position or appearance alone does not answer every question about identity or quantity. The method, reference information and relevant controls determine what the signal can support.

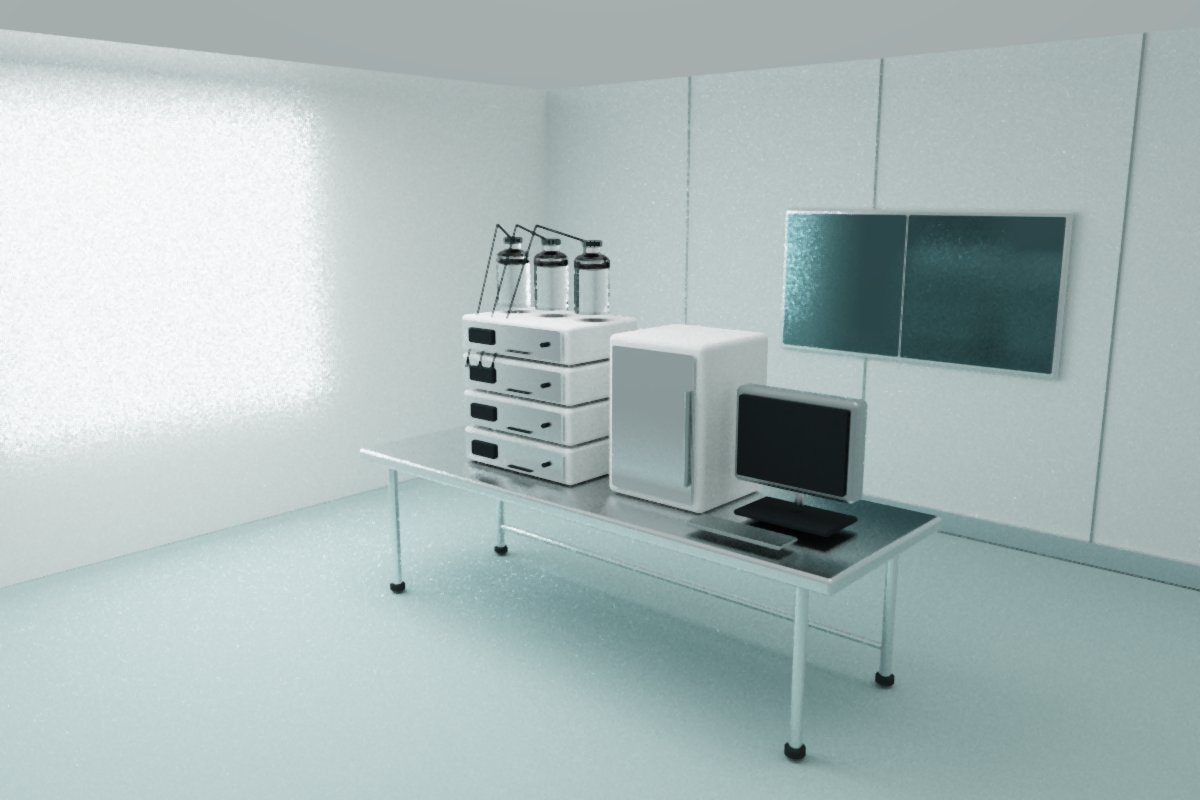

The overview describes an instrument arrangement including solvent reservoirs, pumps, a sampler, a column and a detector. Each part contributes to the separation and measurement. Changes in preparation or operating conditions can affect the result, which is why the approved method and the actual instrument conditions need to remain connected in the record.

Method validation examines whether the analytical procedure is suitable for its intended use. The study has to reflect the sample, the information required and the relevant operating conditions. A method that separates a mixture well may still be unsuitable for a particular measurement if its interpretation or preparation is weak. The validation question extends beyond the visual appearance of the chromatogram.

System suitability examines whether the analytical system is suitable for the required analysis under the relevant conditions. The HPLC overview describes quantitative suitability criteria used in analysis. Those criteria belong to the established method. Passing a suitability check does not by itself establish that the sample was correctly identified or prepared.

Both activities depend on defined expectations. The team needs to know what each check demonstrates and what remains outside it. An equipment calibration, a suitability result and a method-validation conclusion provide different evidence. Treating them as interchangeable can leave an important question unanswered while the file still appears complete.

A laboratory record should let a reviewer follow the sample from its identification through preparation, analysis and interpretation. Supporting information may include calculations, instrument output, relevant observations and any departures from the method. The record’s purpose is to explain the result, not simply to display the final value.

Part 211 describes review and approval of laboratory controls and documentation at the time of performance. It also calls for reasons and supporting data when an established method is modified. Those requirements help distinguish controlled technical change from an informal adjustment made during a difficult run.

The data integrity page examines record changes and electronic controls in more detail. Laboratory review uses the same principles to maintain a dependable connection between the work and the decision.

FDA’s OOS guidance page defines out-of-specification results as results outside established specifications or acceptance criteria. Its definition also includes relevant in-process laboratory tests. The term describes the relationship between the result and the expectation; it does not establish the cause of the difference.

Part 211 requires thorough investigation of an unexplained discrepancy or a batch or component failure to meet specifications. It extends the investigation to related batches or products that may be associated with the failure. A useful laboratory investigation therefore examines testing conditions while also considering the manufacturing context.

A later acceptable value does not explain why the earlier value differed. Additional work should answer a defined question and preserve the earlier evidence. The investigation may identify a supported testing problem, a manufacturing issue or unresolved uncertainty. Its conclusion needs to reflect that evidence. The report should explain the reasoning, the relevant scope and the follow-up rather than merely replacing the unexpected result.

The process analytical technology overview describes PAT in terms of measurement of process parameters that affect quality attributes. The emphasis is process understanding and control. This gives laboratory knowledge a role beyond checking a sample after manufacturing: suitable measurements can help explain how process conditions relate to the intended output.

Measurement still needs a purpose and a dependable record. A signal collected frequently can be difficult to interpret if its relationship to quality is unclear. The overview discusses understanding the process and evaluating available information and measurement tools. Those considerations help keep technical enthusiasm connected to a manufacturing question.

The laboratory is strongest when its findings reach the people responsible for the process. Reliable evidence can then support release decisions, investigations, validation and improvement.
